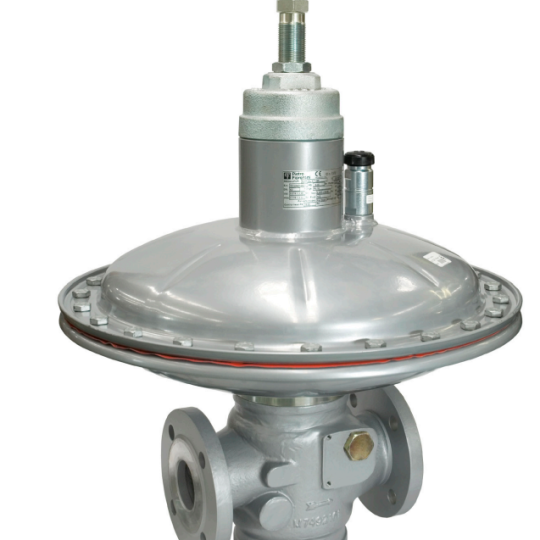

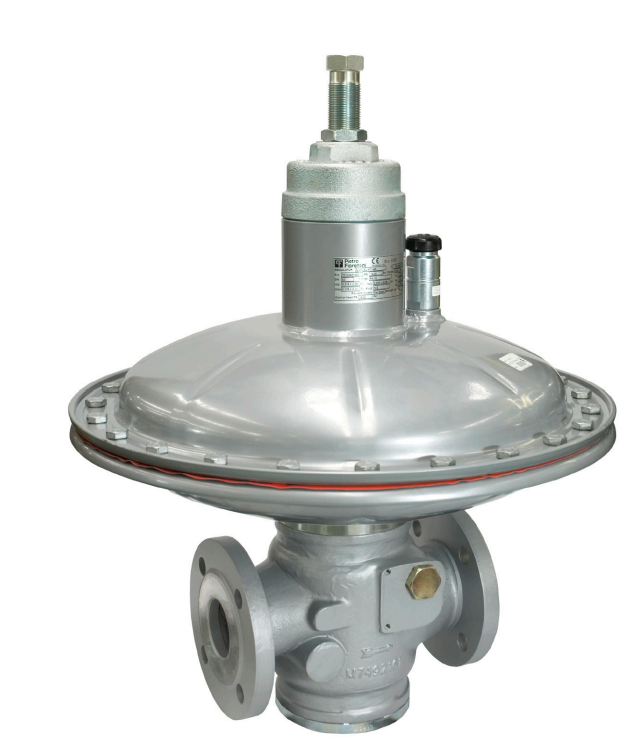

Norval Description Norval by Pietro Fiorentini is a direct-operated gas pressure regulator. Suitable for use with previously filtered gaseous fluids, it is mainly used for medium and low pressure natural gas distribution networks. It is classified as Fail Open according to the European Standard EN 334. Norval is Hydrogen Ready for NG-H2 blending. Click here to see the product page in the 100% hydrogen version.

Mã sản phẩm:
NORVAL/G T.658
Giá:
Liên hệ
Lượt xem:
89

Liên hệ Gọi ngay: 0976609121

Thông tin sản phẩm
Bình luận

Features

Accuracy class AC: up to 5 | up to 1% absolute (depending on working conditions)
Nominal sizes DN: 1″, 1″ 1/2, 2″, 2″ 1/2, 3″, 4″, 6″, 8″
Lock-up pressure class SG: up to 10
Design pressure: up to 18.9 bar
Design temperature: from -20 °C to +60 °C
Connections: class 150 RF according to ASME B16.5 and PN 16 according to ISO 7005
Range of downstream pressure Wd: from 0.008 to 4.4 bar for DN up to to 4″, from 0.012 to 1.8 bar for DN 6″ and 8″
Inlet pressure range bpu: from 0.1 to 18.9 bar for DN up to 3″, from 0.1 to 8.6 bar for DN 4″, 6″ and 8″
