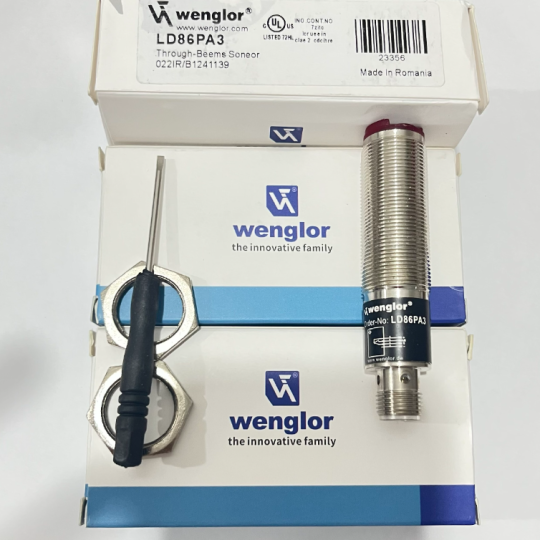

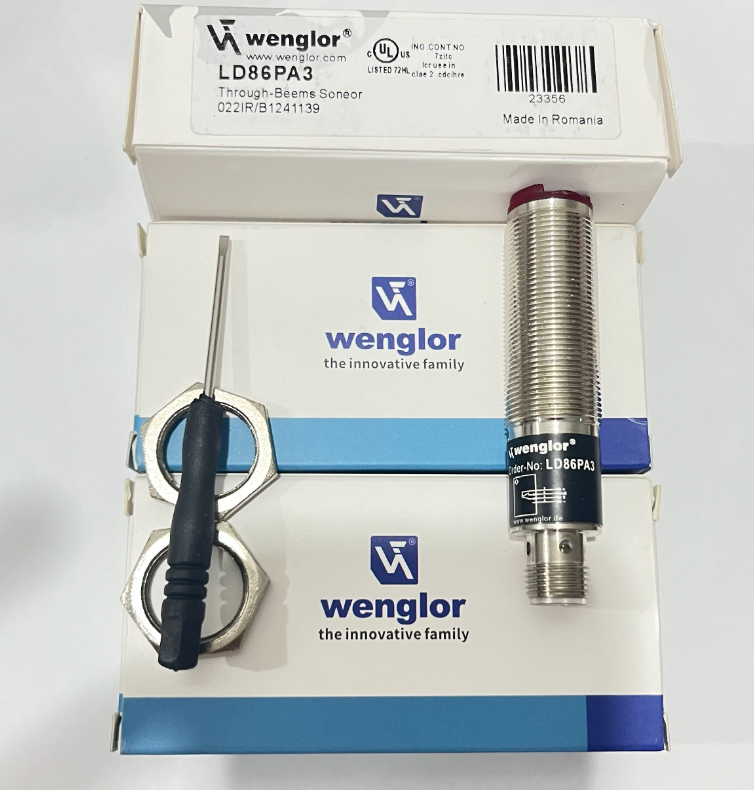

CẢM BIẾN QUANG LD86PA3

Range

6,000 mm

Reference Reflector/Reflector Foil

RQ100BA

Switching Hysteresis

 < 15 %

Light Source

Red Light

Polarization Filter

yes

Service Life (T = +25 °C)

100,000 h

Max. Ambient Light

10,000 Lux

Opening Angle

5 °

Two-Lens Optic

yes

Supply Voltage

10 ... 30 V DC

Current Consumption (Ub = 24 V)

< 40 mA

Switching Frequency

1 kHz

Response Time

500 µs

Temperature Drift

< 10 %

Temperature Range

-10 ... 60 °C

Switching Output Voltage Drop

< 2.5 V

PNP Switching Output/Switching Current

200 mA

Residual Current Switching Output

< 50 µA

Short Circuit Protection

yes

Reverse Polarity Protection

yes

Overload Protection

yes

Protection Class

III

Setting Method

Potentiometer

Housing Material

Stainless Steel

Full Encapsulation

yes

Degree of Protection

IP67

Connection

M12 × 1; 4-pin

Weight

36 g

PNP NC, PNP NO

yes

Circuit

NC
NC+NO
NO
