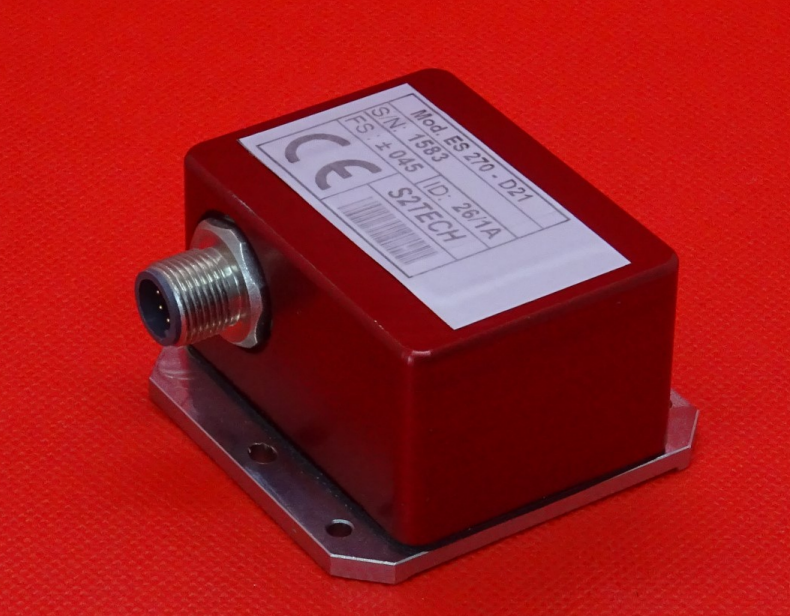

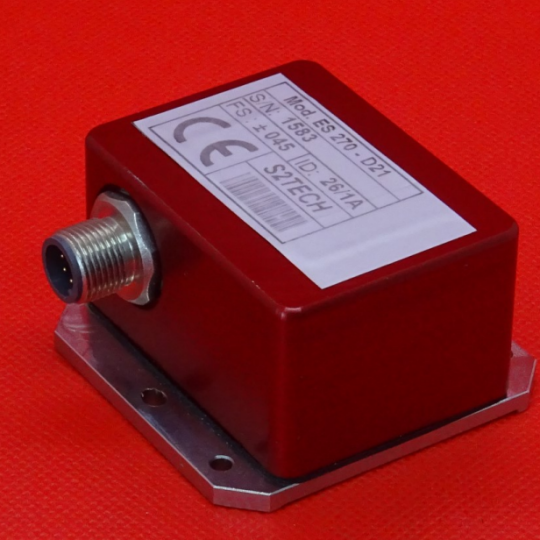

CẢM BIÊN GIA TỐC ES270

• Measuring of  inclination on two axis, in relation to the horizon up to ±45°
• Rotation measuring on a single axis, on a vertical surface, up to  ±180°
• Modbus o CANopen protocol
• Precise, strong and inexpensive
• Catalog:   https://www.s2tech.it/wp-content/uploads/2023/09/Datasheet-ES270_EN.pdf

Series ES270 transducers have a built-in monocrystalline silicon MEMS sensor to measure inclination (with absolute vertical reference) as well as acceleration on X and Y axis. MEMS sensors can measure both static and dynamic accelerations, by means of a differential capacitor which parts move when a difference of acceleration and tilt is applied. MEMS sensors are extremely rugged and can withstand high shocks and vibrations with also the advantage of being miniaturized and with a good price/performance ratio. When X and Y measuring axis are parallel to the horizon, then MEMS sensor has the highest sensitivity to inclination because the working function is sinusoidal: Pitch (degrees)= sin (acceleration/1g). When X and Y measuring axis are orthogonal to the horizon, then MEMS sensor has the lowest sensitivity to inclination because the working function is co sinusoidal: Roll (degrees)= cosine (acceleration/1g). Main applications in which this transducer can be used are: Attitude control on industrial machinery, on industrial vehicles (agriculture machines, forest and timber machines, grading machines, caterpillars, drilling machines, concrete machines etc.), on boats, civil engineering applications (on dams, bridges, masonry walls, historical buildings, etc.), geotechnical applications, on antenna or inertial platforms.
