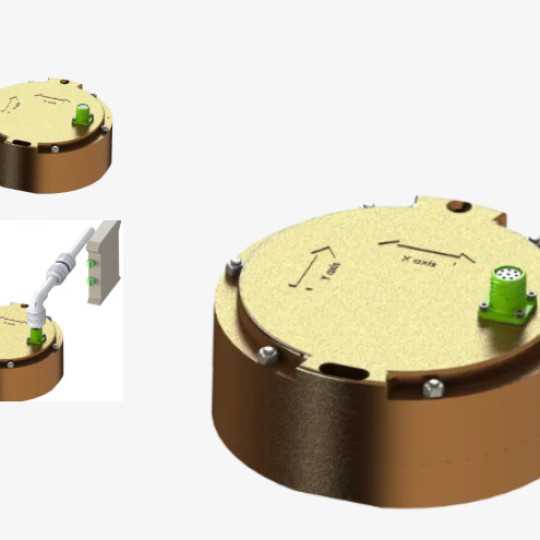

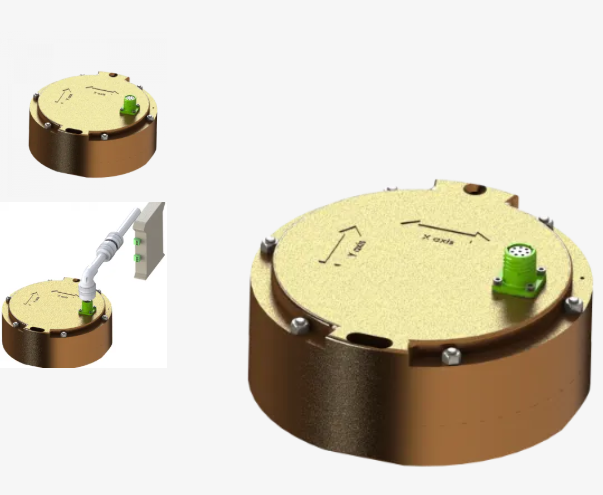

CẢM BIẾN ĐO ĐỘ NGHIÊNG ES291D41
ES291D41 digital bi-axial inclinometer for steel plants
-
ES291D41
-
Liên hệ
-
97
- Measuring of inclination on two axis, in relation to the horizon up to ±45°
- Rotation measuring on a single axis, on a vertical surface, up to ±180°
- Modbus or CANopen protocols
- PROFIBUS connection (optional)
- precise, strong and inexpensive
| Fullscale | |
|---|---|
| Sensitivity | |
| Relative accuracy |
±0,1° from 0° to 30° ±0,25° from 30° to 45° |
| Crossed sensitivity |
2% FS for each axis |
| Power supply |
24 Vdc (-20/+10%) with protection from polarity inversion and galvanic isolation (500V) |
| Shock resistance |
3500g on axis XYZ |
| Update rate |
50 Hz max, with the possibility to set specific filterings for each application |
| Operating temperature | |
| Maximum drift due to temperature |
0,4° (global) |
| Environmental protection | |
| Output signal type | |
| Digital output | |
| Material | |
| Fullscale |
±180°, as rotation on vertical surface (single measuring axis) |
